Food grade grinding machine

One reliable grinder for grains, spices, herbs and dry materials.

A high-speed grinder with SUS304 stainless-steel material-contact parts. Suitable for grains, salt, spices, herbs and dry raw materials, with adjustable fineness up to 120 mesh.

Up to 120 mesh3 models availableWhatsApp support

View specifications

120 meshFine powder grinding

SUS304Stainless-steel contact parts

120 meshFineness adjusted by screen

220V/380VVoltage options available

WhatsAppQuick application guidance

About the machine

A practical powder-processing solution for food production.

From small-batch testing to continuous production, three models let you match capacity, screen size and power supply to your operation.

Suitable materialsGrains, spices, herbs, salt and dry particles

FinenessUp to 120 mesh, depending on material and screen

ConstructionSUS304 stainless steel, easy to clean and maintain

Applications

Built for everyday powder-processing needs.

GrainsSpicesHerbsSalt and particlesDry food ingredientsChemical raw materials

Three models

Choose by capacity, fineness and material.

Send us your material, required hourly output and target mesh size for a suitable configuration.

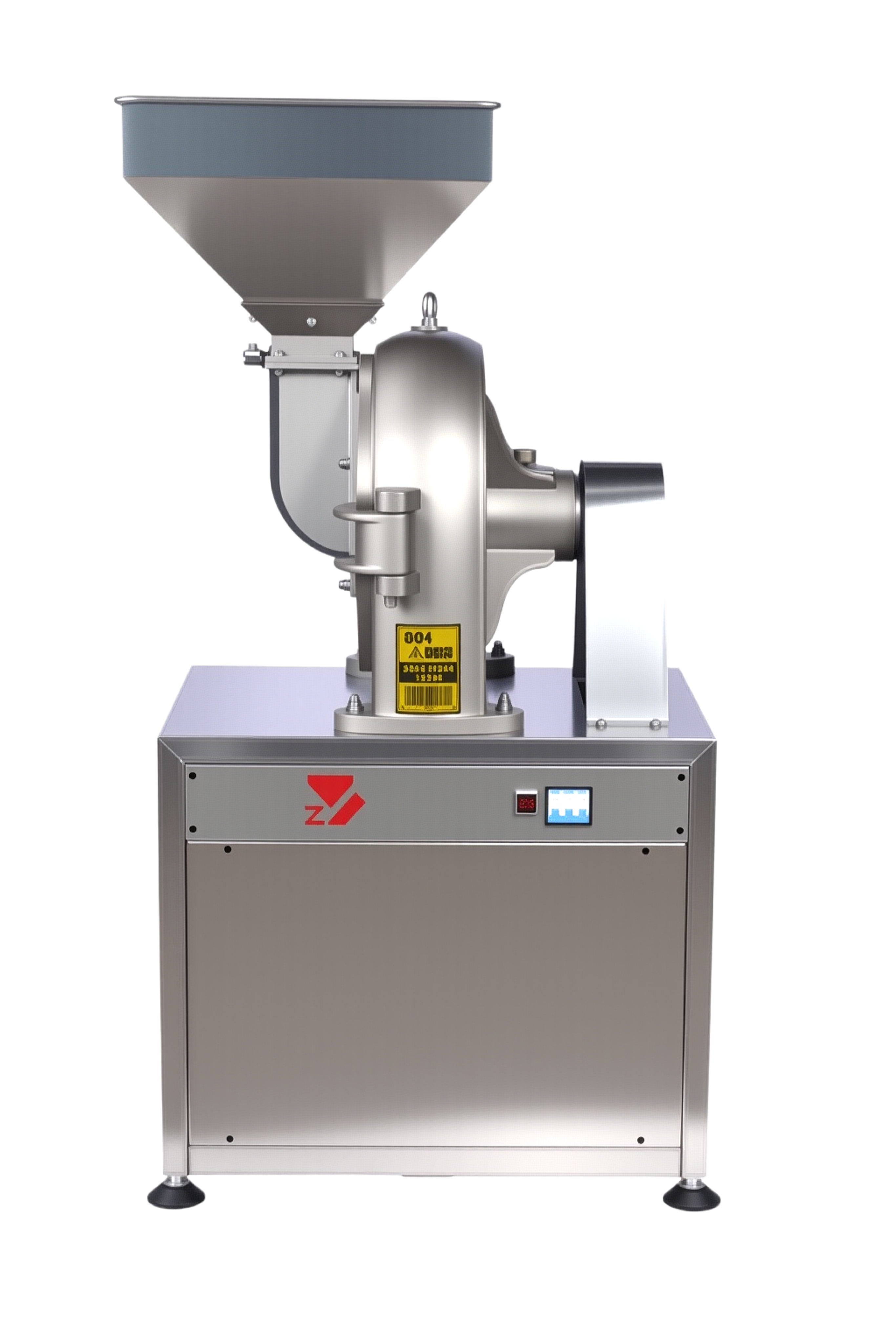

Model A

Large-capacity stainless grinder

For larger-volume grinding of grains, spices, herbs and dry chemical raw materials.

Capacity	Approx. 650 kg/h
Screen	1 mm standard, adjustable
Speed	1500 rpm
Motor	11 kW
Voltage	380 V
Material	SUS304
Machine size	760 x 580 x 1450 mm
Net weight	Approx. 226 kg

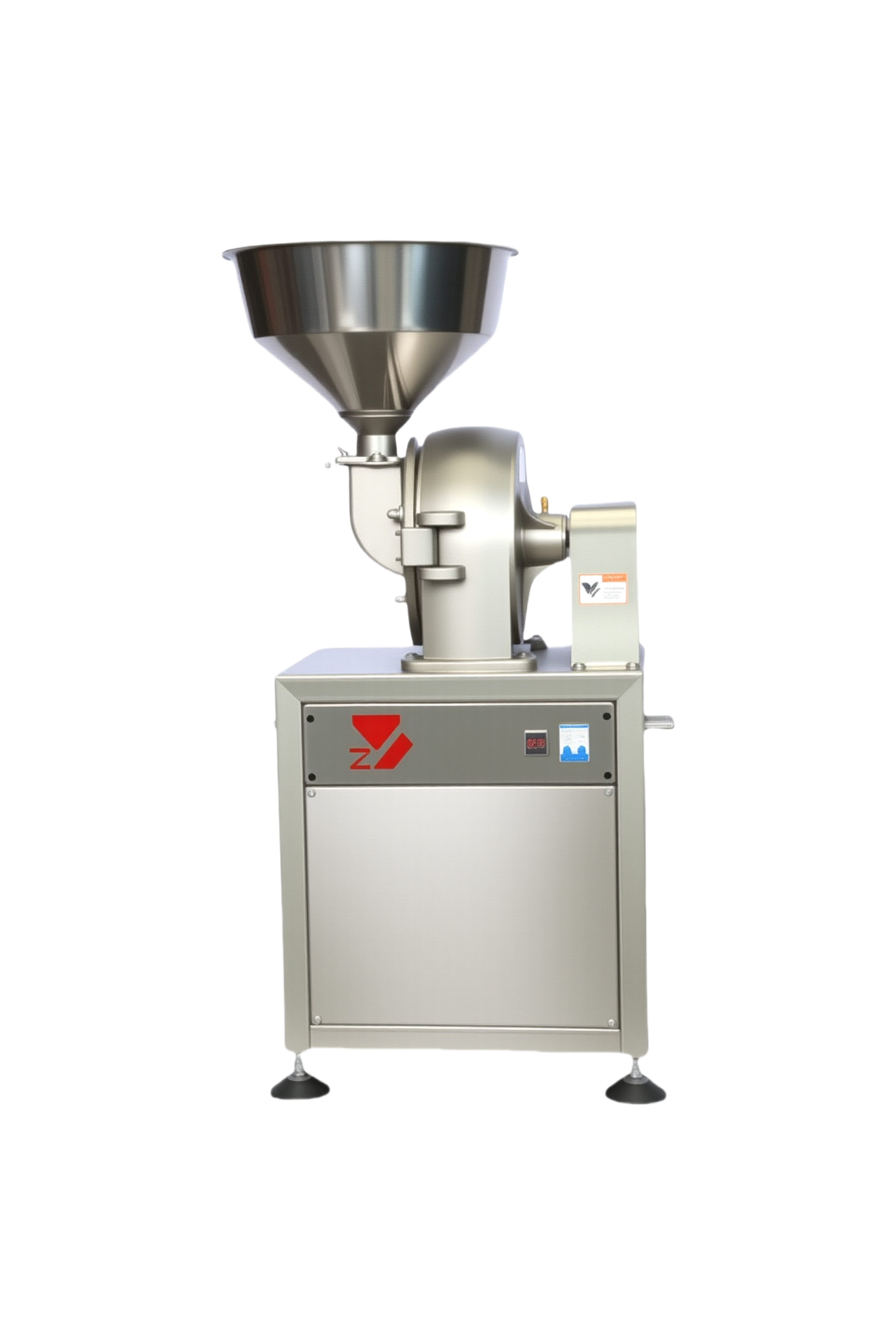

Model B

Multi-specification fine grinder

A compact option for small and medium production, with screen options for different outputs.

Capacity	Approx. 65-200 kg/h
Screen	1 mm standard
Speed	2800 rpm
Motor	2.6 kW
Voltage	220 V / 380 V
Material	SUS304
Machine size	450 x 320 x 1030 mm
Net weight	Approx. 68.5 kg

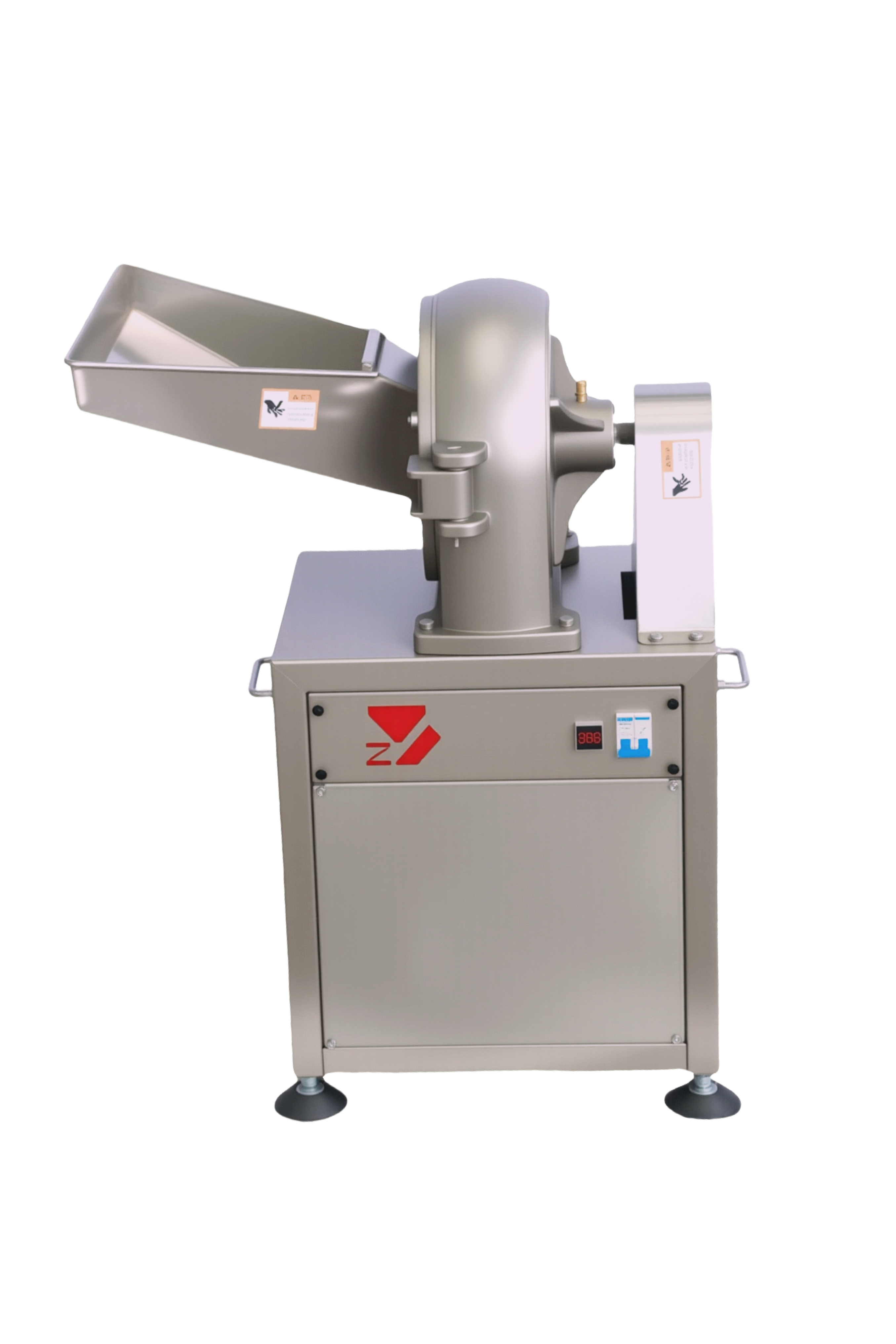

Model C

High-efficiency side-feed grinder

The side-feed design is suited to higher-capacity dry material grinding applications.

Capacity	Approx. 85-260 kg/h
Screen	1 mm standard
Speed	2800 rpm
Motor	3.5 kW
Voltage	220 V / 380 V
Material	SUS304
Machine size	640 x 350 x 850 mm
Net weight	Approx. 83.8 kg

Get a quote

Tell us your material and target mesh size.

For example: grains, spices, herbs or chemical raw materials; 80, 100 or 120 mesh; and your required output per hour.
